Advantech IDS-3117

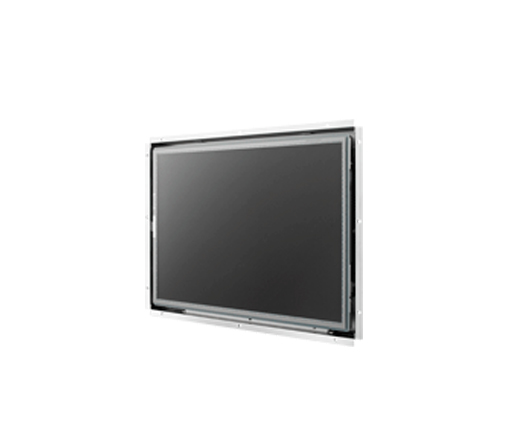

Advantech IDS-3117 17-inch Open Frame Monitor

Main Features:

  • 17″ 1280 x 1024 SXGA LCD panel with LED backlight for 20% power saving and environmental protection
  • -20°C~+60°C wide operating temperature support
  • 5-wires resistive touchscreen solution
  • Combo touch interface RS-232 and USB
  • Dual signal interface with VGA and DVI (on selected models)
  • Integrated bracket for easy installation
  • Versatile mounting methods for Rear mounting and VESA mounting
  • Anti-Reflective surface treatment for sunlight readable enhancement (optional)
  • Ultra high brightness solution of 1200 nits for outdoor application (optional)

Downloads

SKU: Advantech IDS-3117 Category:

Description

The Advantech IDS-3117 Open Frame Monitor features a sleek, ultra-slim design and supports a 17″ TFT LCD screen with a resolution of 1280 x 1024 pixels. It operates in a wide temperature range of -20 to +60°C and offers an optional resistive touchscreen. This series supports both rear and VESA mounting, making it suitable for a wide range of embedded applications.

For more information and pricing, contact our technical sales team here
