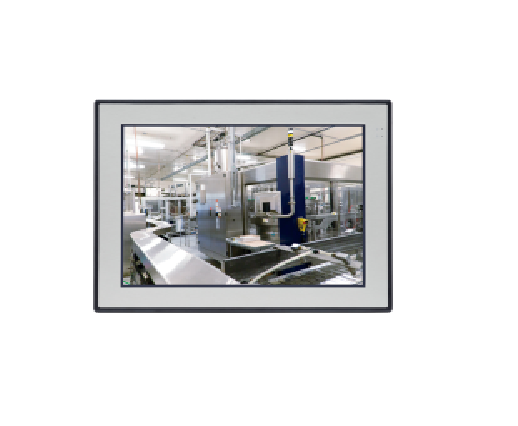

Nexcom APPC 1950T 19-inch Industrial Panel PC

Main Features:

  • 4:3 19″ SXGA fanless LED panel computer
  • Intel® Celeron® J3455 processors, low consumption CPU
  • Flush panel by 5-wire touch screen
  • 2 x DDR3L 1866MHz sockets, up to 8GB (non-ECC)
  • Dual Intel® GbE LAN ports/DP/Dual USB 3.0 & USB 2.0
  • 1 x mini-PCIe sockets, 1 x M.2, 1 x RS232/422/485
  • DDR3L 4GB/2.5” HDD bracket
  • IP65 compliant front panel
  • Mounting support: panel/wall/stand/VESA 100mm x 100mm
  • DC power input 24VDC

Downloads

SKU: Nexcom APPC 1950T Category:

Description

The Nexcom APPC 1950T 19-inch Industrial Panel PC, incorporating an industrial motherboard, is intended for versatile industrial applications. APPC 1950T supports 1280 x 1024 (SXGA) resolution and 350-nit brightness. The front panel, featuring a flush design and complying with the IP65 standard, makes it an ideal fit for industrial applications.

APPC 1950T supports LTE, WLAN communications via dual Gigabit Ethernet connectors and mini-PCIe slot . Several options are on storage devices like M.2 and 2.5” SSD. With support for DC power input of 24VDC, APPC 1950T can gain a strong foothold in industrial field and machine devices. In addition, APPC 1950T can hook 2nd display via a DP for dual independent display, with the 3 x COM ports option , which will make it a really intelligent system for various solutions.

Additional information

Manufacturer

Nexcom

Screen Size

19"
